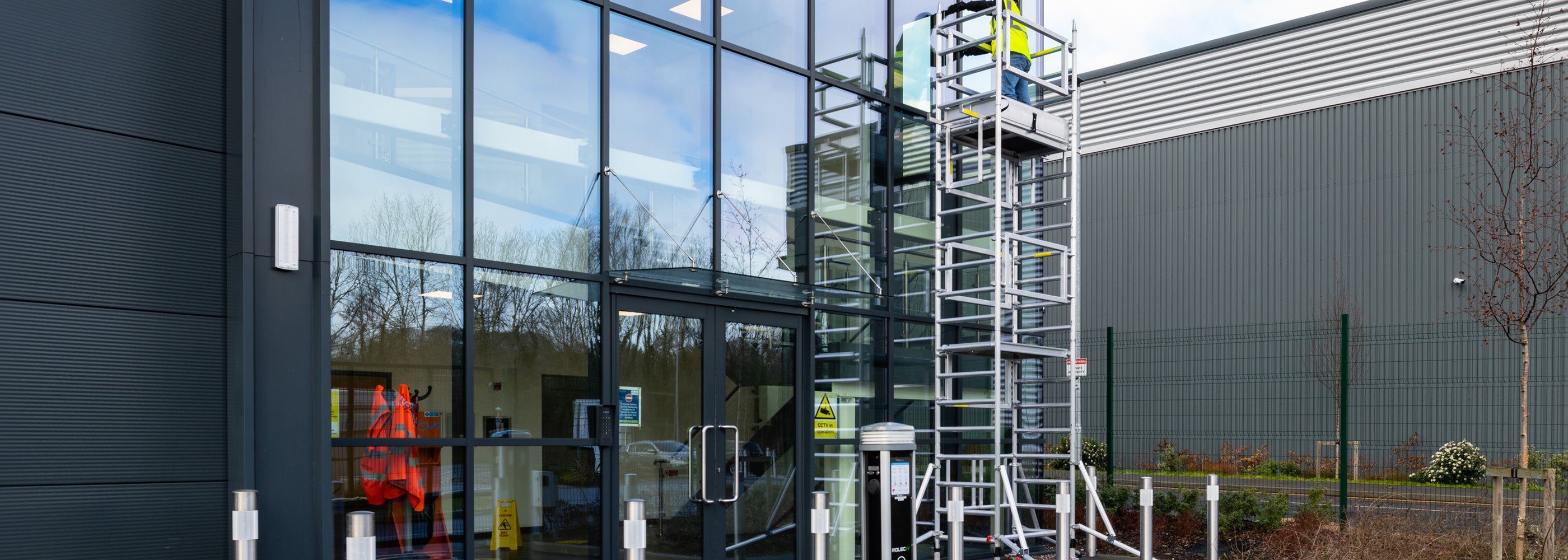

Alto one man tower outside a modern building with glass facade.

One man access tower.

ALTO Mini Tower

Mini Tower. Maximum performance.

The Alto Mini Tower is the newest addition to the Alto Access product range. Designed to be transported, handled, assembled and used by only one operative, the Alto Mini Tower is the ideal compact tower solution for one man use and perfect to maintain social distancing when required.

The Alto Mini Tower can be constructed up to a working height of 6m and its compact footprint means it is perfect for use in confined spaces. The base unit is also narrow enough to fit through standard doorways.

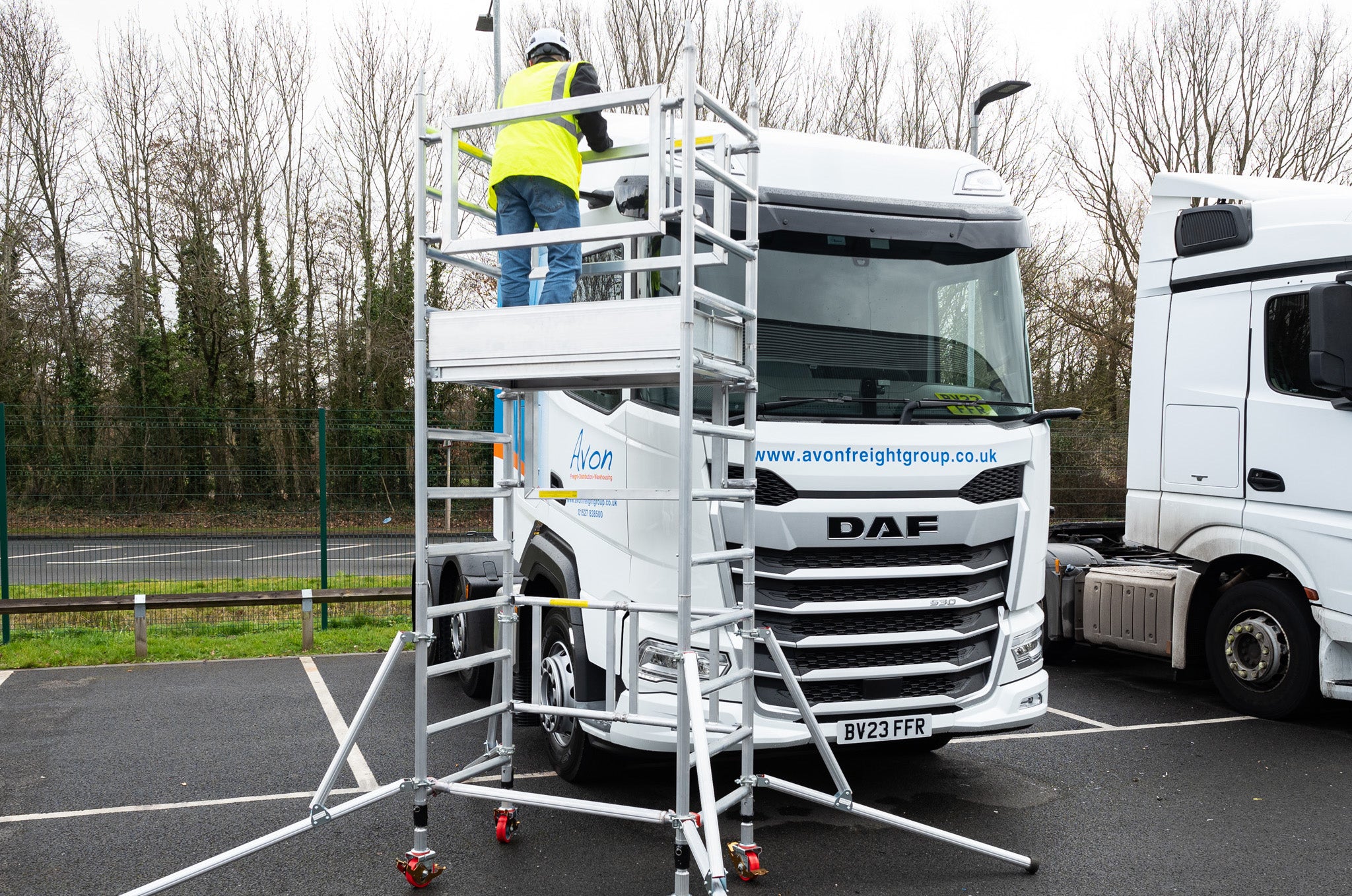

A photo of the Alto Mini Tower against a HGV

Tower Specification

These are the key specifications of the Alto Mini Tower. A downloadable copy of the tower data sheet also available.

Download Dataheet
Tower Loading

350 kg

Tube Diameter

48 mm

Tube Wall Thickness

2 mm

Platform Length

1.2 m

Frame Connection

Auto-locking conical head fitting

Toeboards

All-in-one folding alloy

Stabilisation

Variable Geometry


Manufactured using the same materials as the Alto MD tower range her in the United Kingdom, users can be confident that the Alto Mini Tower is a robust yet lightweight, compact access tower suitable for a wide range of applications - not only for industrial applications and on construction sites, but also perfect for use in domestic environments.

The Alto Mini Tower is fully compliant with BS EN 1004 and being simpler, safer, cheaper and stronger – will outperform and outlast all other brands of one man scaffold tower. This Mini Tower benefits from the long established, legendary quality of Alto Towers.

The Alto Mini Tower is also designed to be stored inside its own trolley when not assembled, making it a simple one-man operation to transport the components from vehicle to work area. When not in use the Alto Mini Tower is small enough to be transported in a small van, pick-up or even a large estate car.

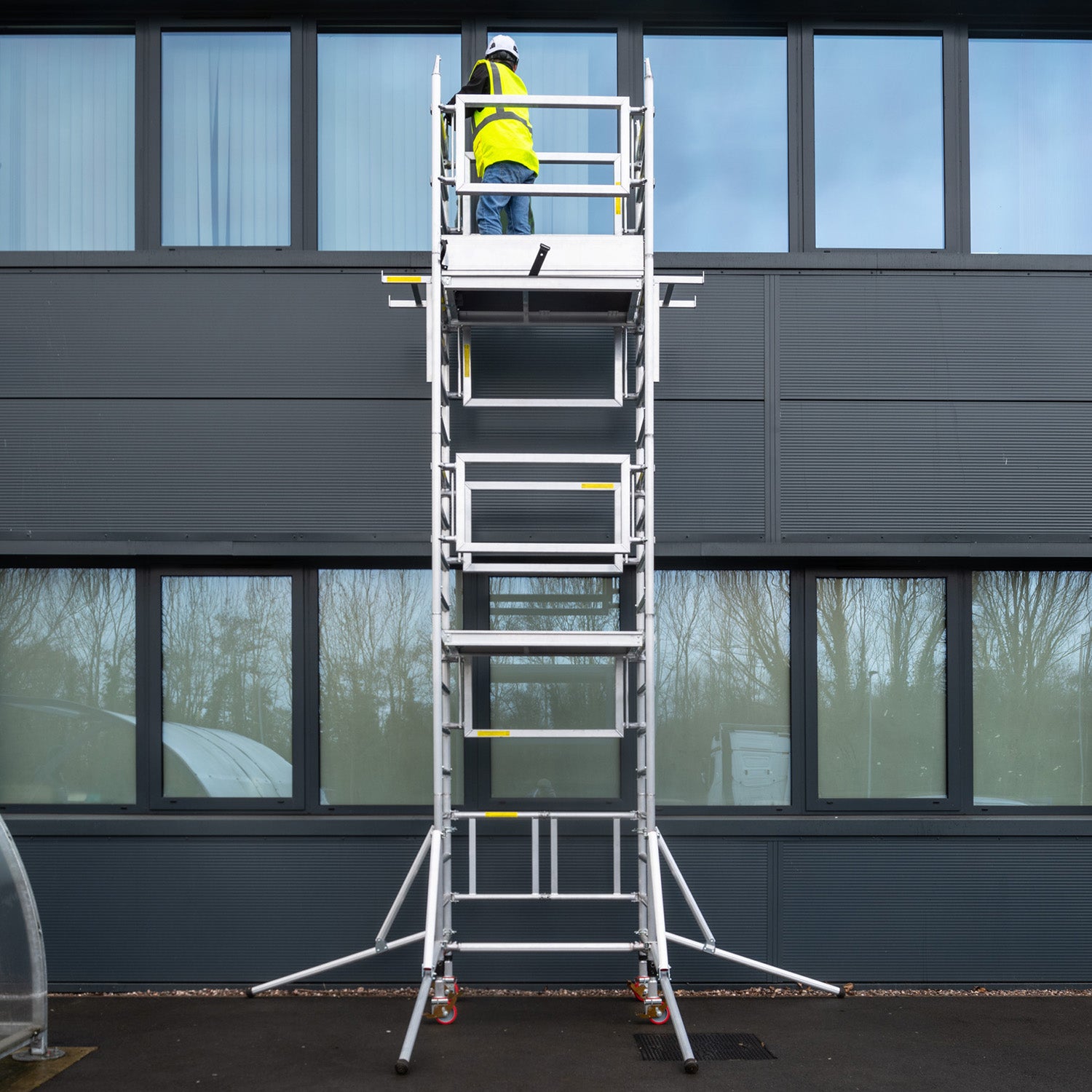

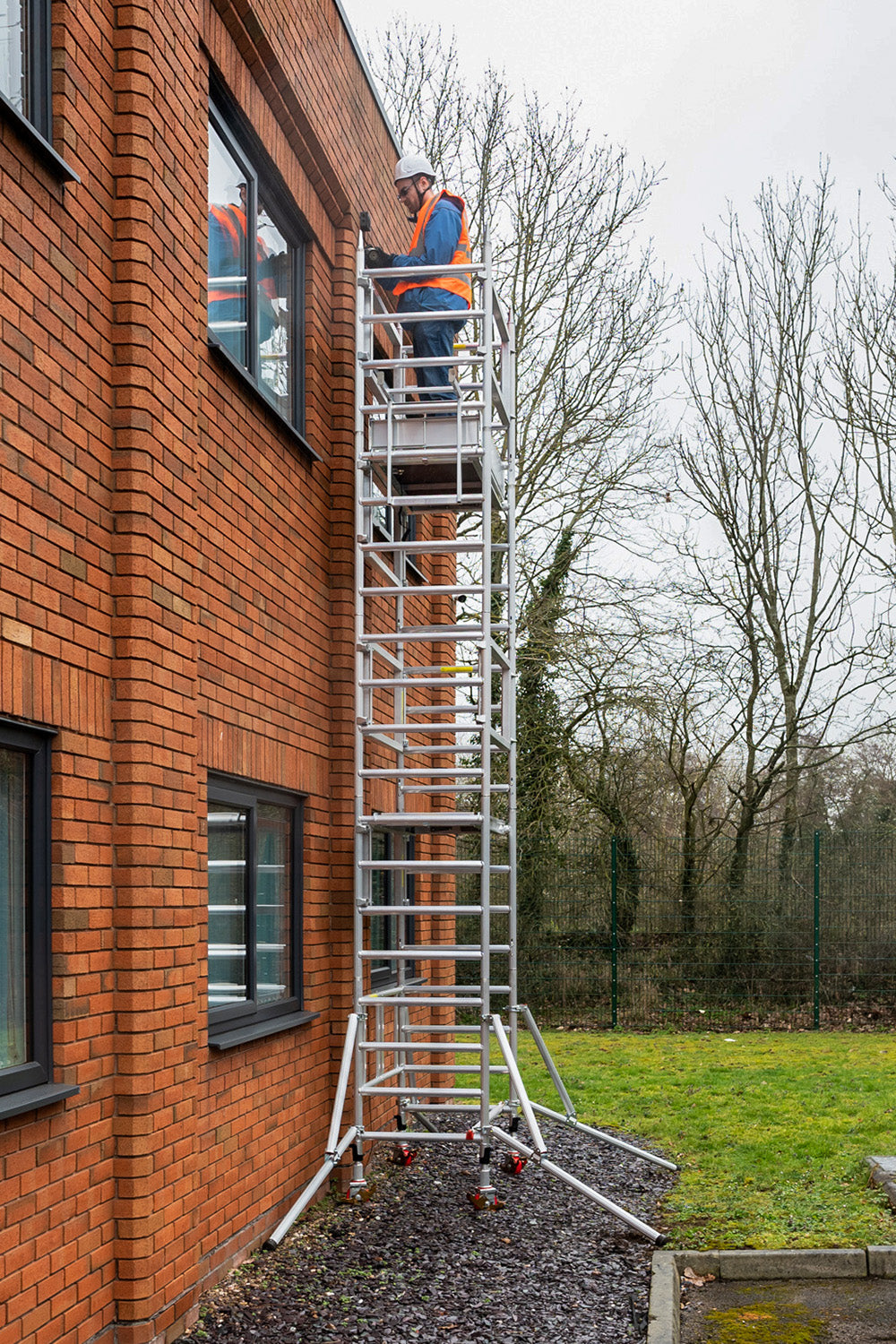

A photo of the Alto Mini Tower against an office building.
An icon of a man holding a spanner.

FEATURES

One Man Assembly

The Alto Mini Tower utilises linked brace hooks. Each end can be connected and disconnected using only one hand, allowing simpler, safer, easier installation and removal. Brace pins secure the panel in place but do not ‘snag’ on tubes hindering removal.

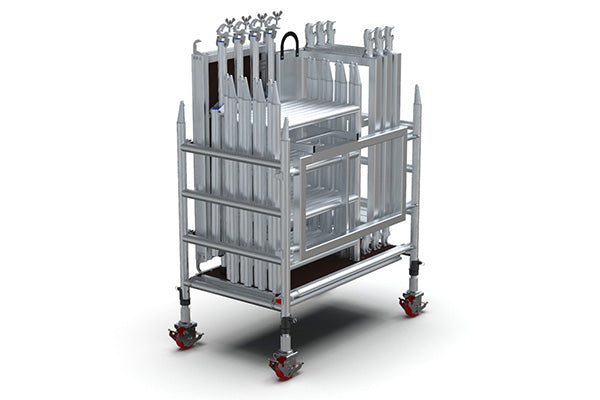

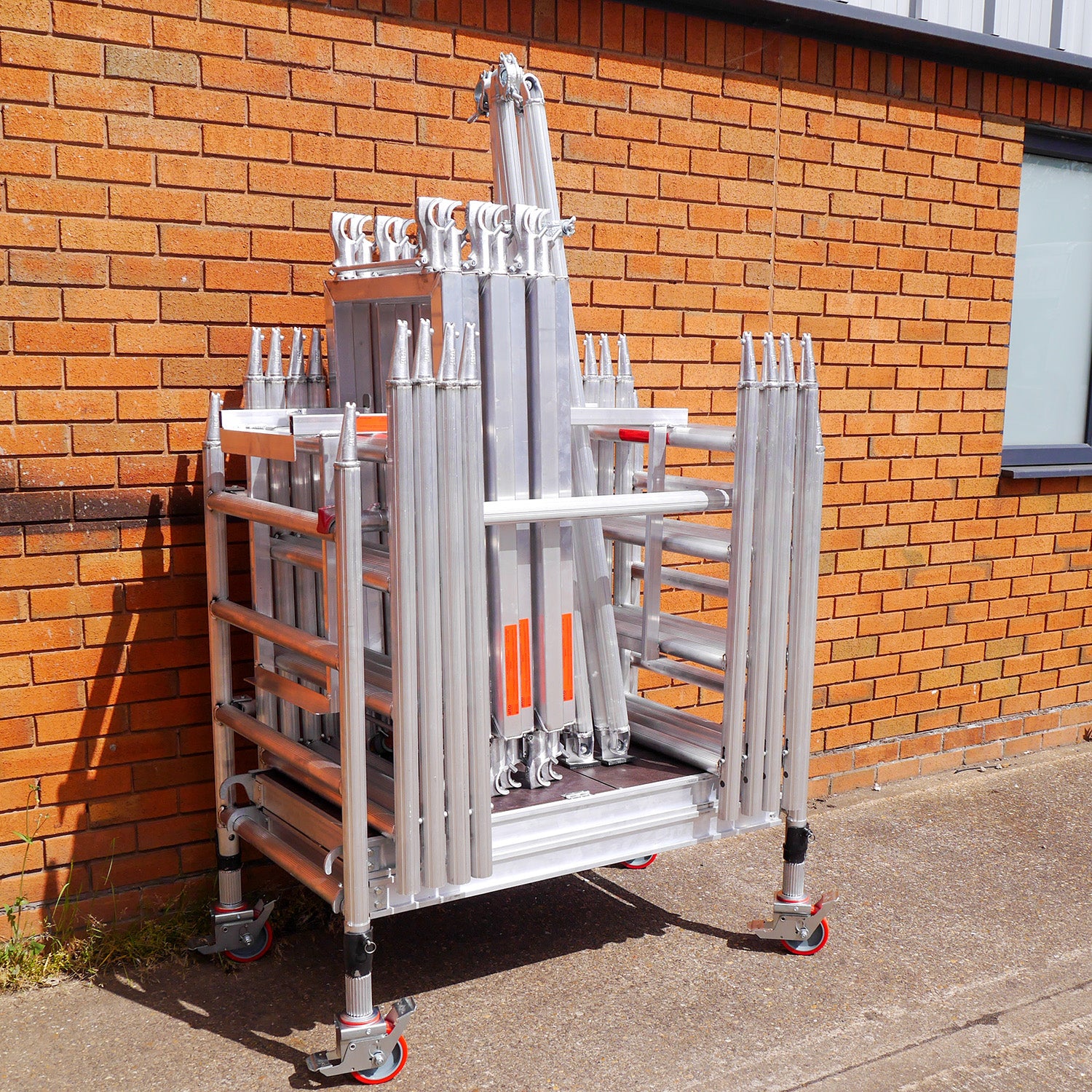

An image showing the Alto Mini Tower packed in its trolley.

FEATURES

Transport Trolley

Stored and transported in its own self-contained base/trolley unit – the Alto Mini Tower is a complete solution for safe, efficient and effective one-man work at height.

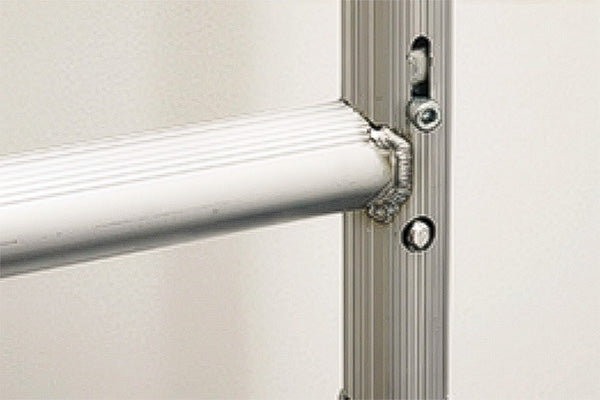

Close up photo of the locking mechanism on an Alto Mini Tower.

FEATURES

Self-locking Frames

The Alto Mini Tower has a unique gravity operated auto-latch to lock frames together. No pins to fit & manually lock, and no spring clips to forget to fit or lose. The latch operates automatically – it cannot be forgotten, overridden or omitted by the operator.

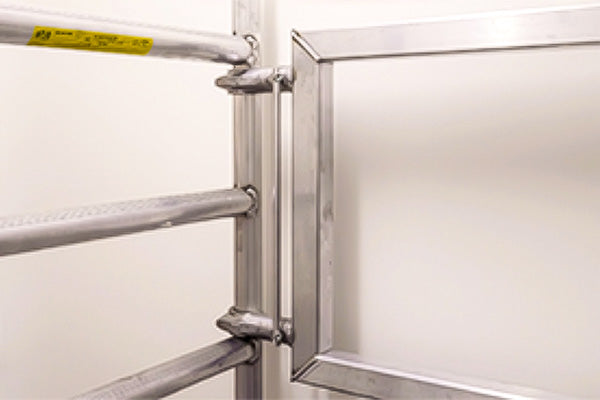

Close up shot of the brace panel on a n Alto Mini Tower.

FEATURES

Quick-fit Brace Panel

The Alto Mini Tower utilises linked brace hooks. Each end can be connected and disconnected using only one hand, allowing simpler, safer, easier installation and removal. Brace pins secure the panel in place but do not ‘snag’ on tubes hindering removal.

Image comparing Alto MD tube with Generic tower tube.

FEATURES

2mm Thick Tube

Our Mini Tower is made using the renowned Alto MD extrusion and connector components. A minimum of 25% thicker than any competitor tower, the Alto extrusion is chosen on capability – not to keep costs down. We don’t use plastic fittings and cheap connectors that will fatigue/fail.

- Videos -

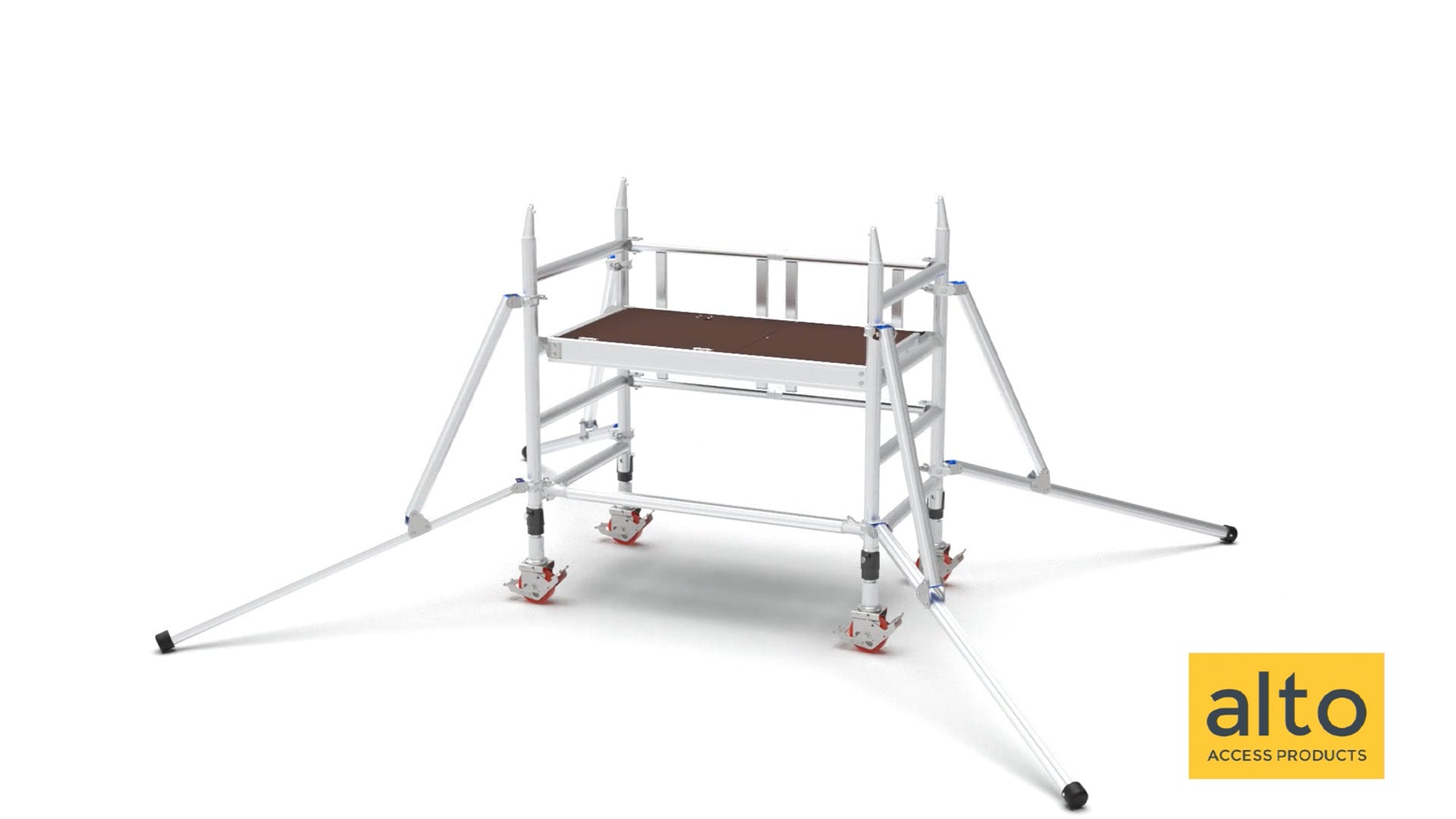

Mini Tower Assembly Sequence

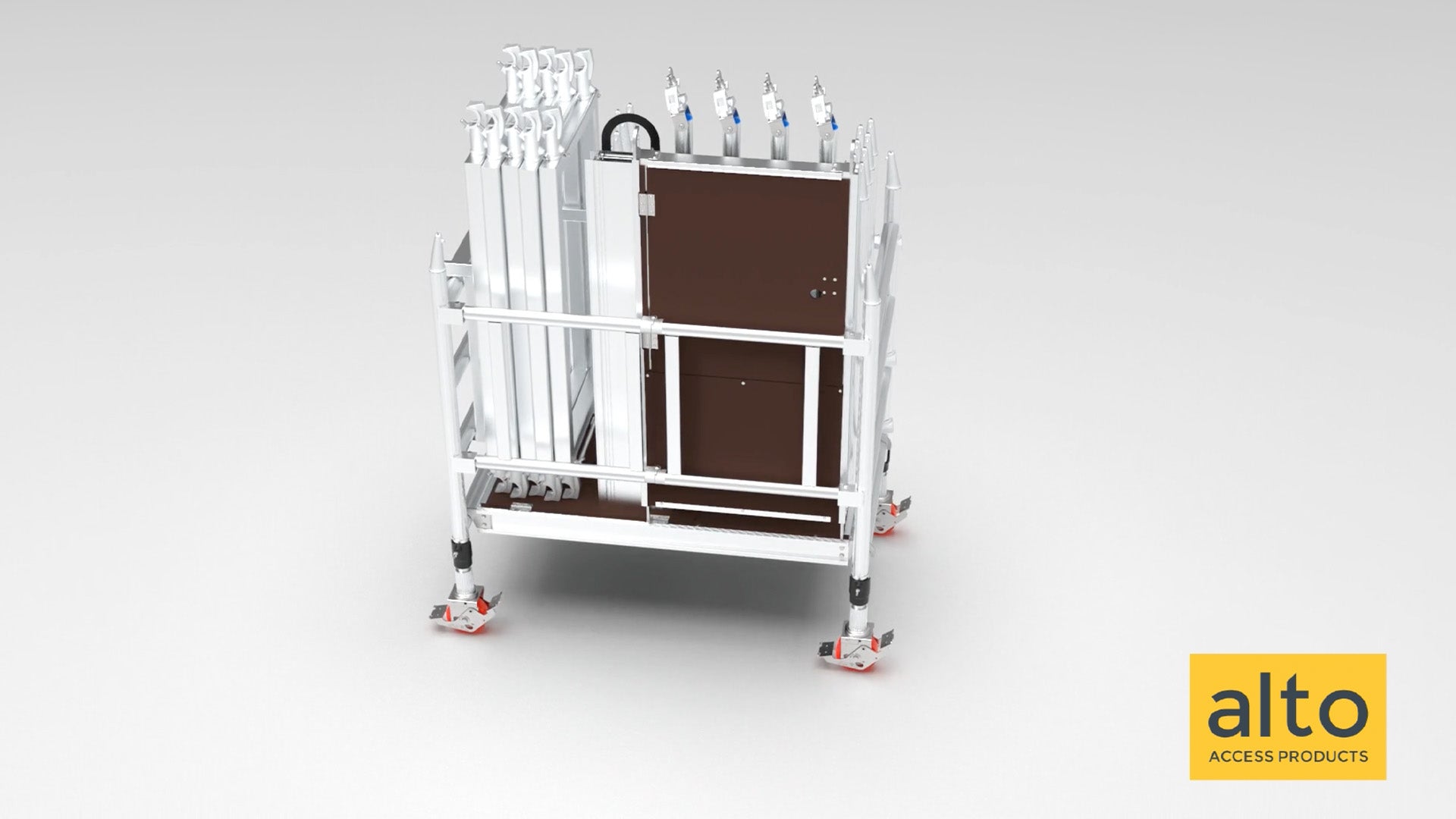

Mini Tower Storage Trolley

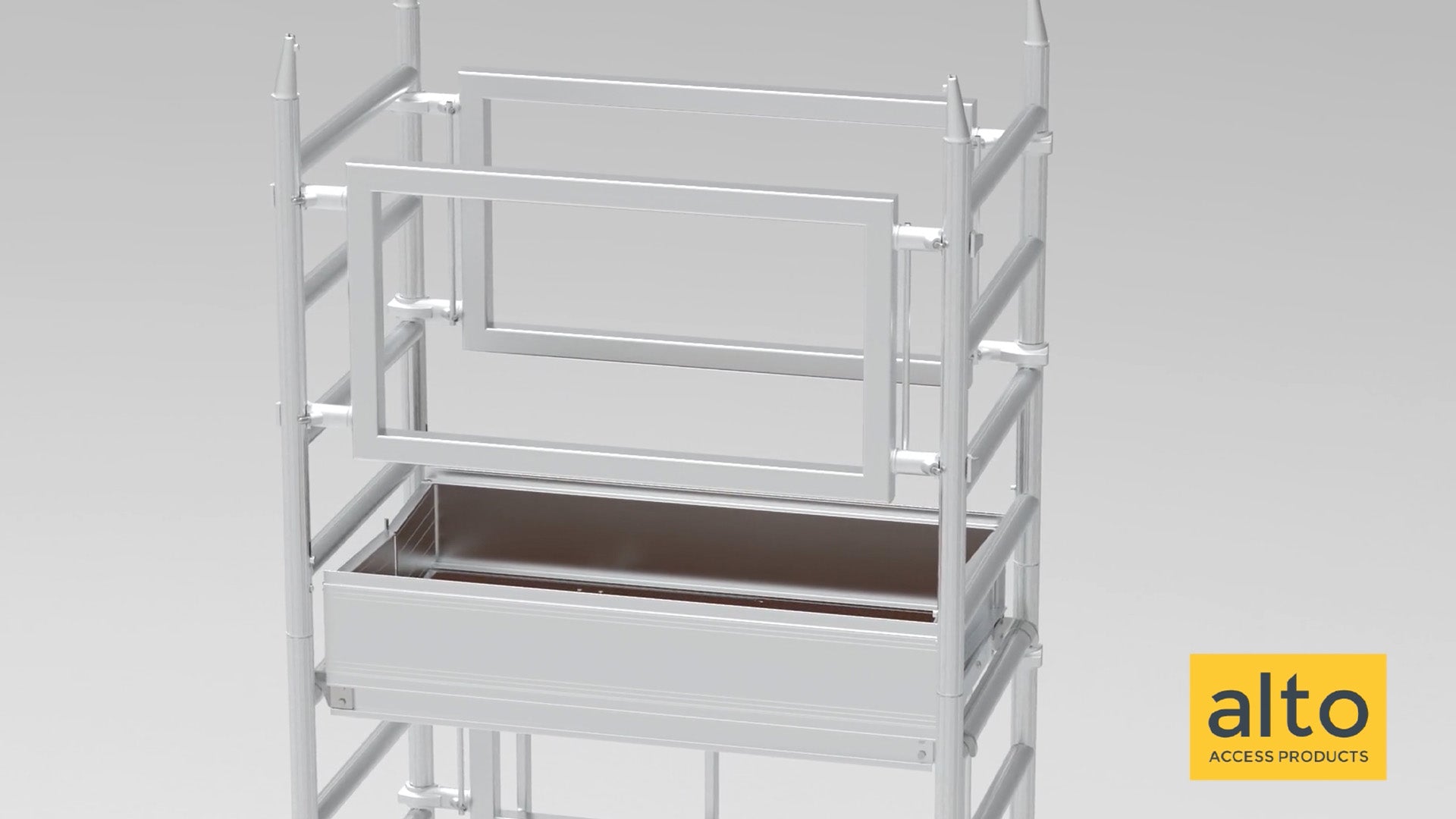

Mini Tower Toeboard Install

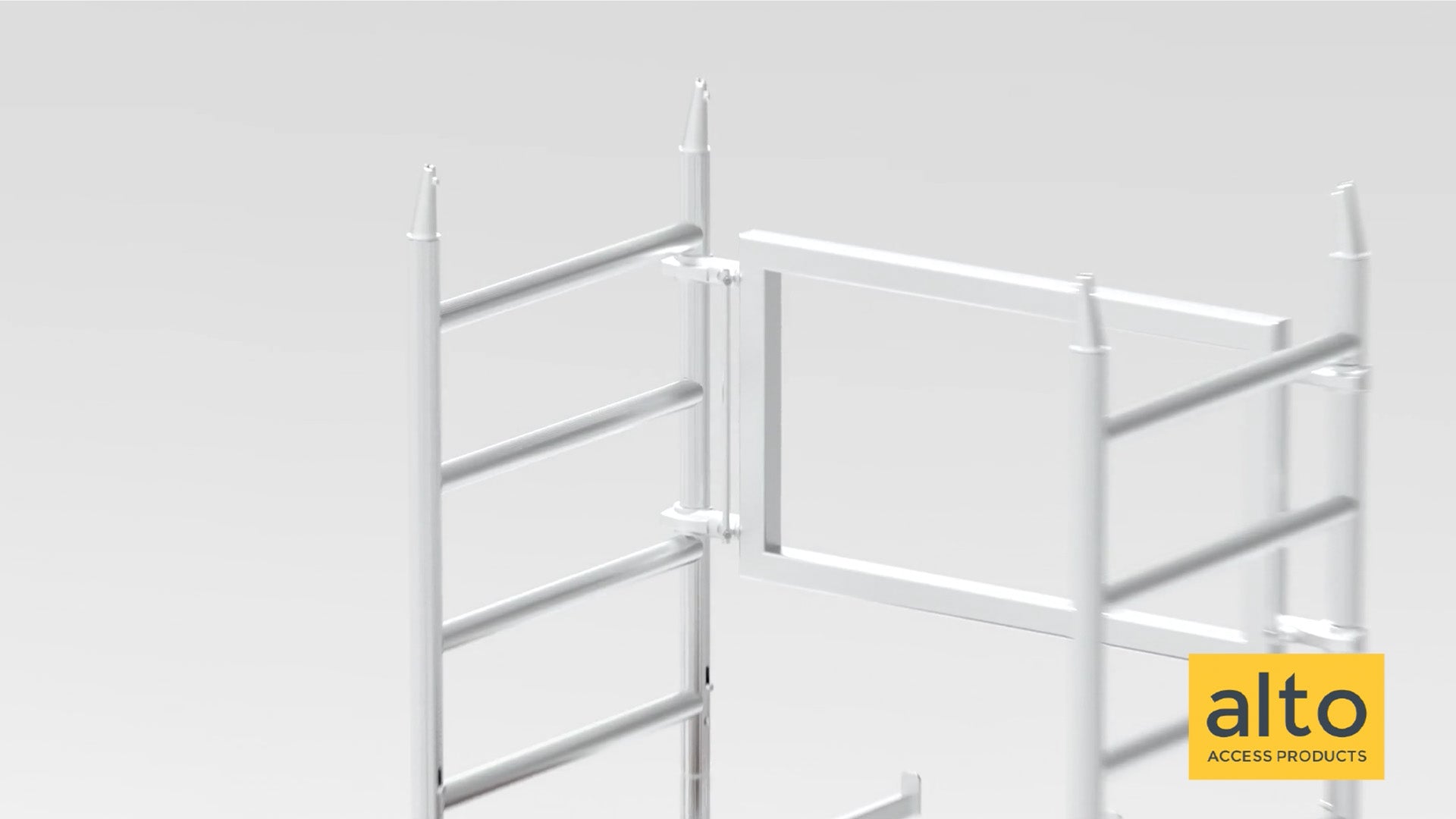

Mini Tower Brace Panel Install
